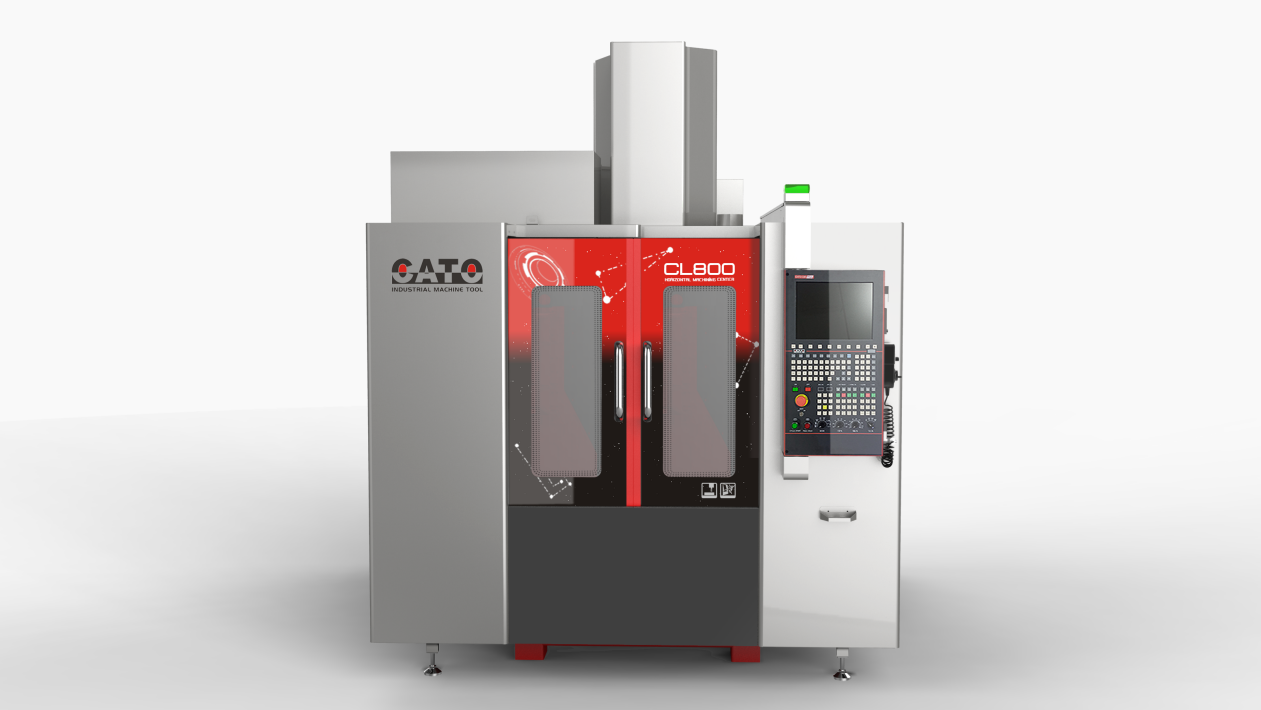

CATO CL800 High-Speed Vertical Machining Center: Redefining Precision Manufacturing Efficiency in the Industry 4.0 Era
Release time:
2025-07-29
Author:
CATO
Source:
Brochure
CATO's CL800 high-speed vertical machining center, with a 12,000 RPM high-torque spindle, a 48m/min ultra-high-speed platform and the C80 Plus intelligent system, empowers industries such as automobiles, enhancing efficiency and precision, and facilitating the upgrade of Industry 4.0.
Core Performance Breakthroughs: Three Technological Innovations Driving Productivity
1. High-Torque Spindle System
12,000 RPM BT40 Direct-Drive Spindle:
Engineered and manufactured in-house at CATO's 1,000㎡ temperature-controlled facility using modular production methods. Delivers peak torque of 57.3 N·m (S6 40% duty cycle) with 30% higher efficiency than belt-driven alternatives.
Military-Grade Thermal Stability:
Dual-circulation liquid cooling maintains ±0.1°C temperature control during continuous high-speed operation, ensuring aerospace part dimensional stability (±0.003mm repeatability).
2. Ultra-High-Speed Motion Platform
48 m/min Rapid Traverse (X/Y/Z):
Roller-type linear guides and lightweight saddle design achieve 1.5G acceleration, reducing non-cutting time by 40% in automotive wheel machining.
1.8s Tool-to-Tool Change Time:
24-station disc magazine accommodates Ø150mm tools with <0.1% failure rate per million cycles, ideal for automotive knuckle machining.
3. C80 Plus Intelligent Control System
3,000 Blocks/Second Processing:
Windows-based open architecture with optical scale dual-loop control and real-time feed forward compensation improves complex contour accuracy by 50%.
AI-Assisted Operation System:
Real-time Ladder logic fault diagnostics (bilingual alarms)
Multi-stage tool life monitoring + adaptive offset compensation
Ethernet/USB dual-channel data transfer

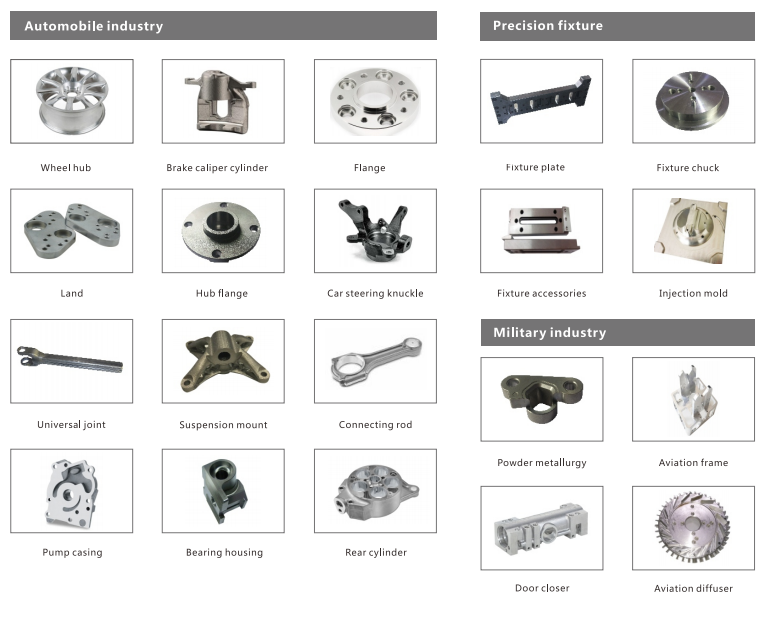

4.Processing Capacity
