Ultimate Guide to Choosing a 5-Axis Machining Center: Boost Precision & Efficiency Unlock the Secrets to Selecting the Perfect 5-Axis CNC Machine for Aerospace, Mold, and Complex Part Manufacturing
Release time:
2025-08-23
Author:
CATO
Source:
Internet
The article details key selection criteria, including workpiece size compatibility, spindle specifications for materials like aluminum and titanium, industry-specific accuracy standards (IT6 for aerospace, IT8 for molds), and the advantages of 5-axis simultaneous machining for complex parts. It also compares high-performance CNC systems like Siemens SINUMERIK ONE and Heidenhain TNC 640. Targeting industries such as aerospace, mold making, and automotive, the guide emphasizes how
With the rapid development of high-end manufacturing, 5-axis CNC machining center have become core equipment for processing complex parts in industries such as aerospace,mold making, and automotive. However, with so many models available on the market, how can enterprises make a scientific selection that balances efficiency, precision, and cost? This article
Systema tically summarizes the key selection criteria for 5-axismachining centers,focusing on work piecesize,spindle performance,precision standards, and CNC systems.
1. Workpiece Size Compatibility Principle
When selecting a 5-axis machining center, the primary consideration is workpiece size, especially the worktable dimensions and Z-axis travel. Proper size matching helps avoid interference and collision issues during machining. The general principle is as follows:
Workpiece Height + Tool Length + Safety Clearance ≤ Maximum Machining Height
For example, if the workpiece height is 200 mm, the tool length is 150 mm, and the safety clearance is 50 mm, the maximum machining height must be at least 400 mm to ensure a safe and smooth process.
2. Rational Selection of Spindle Performance
Spindle performance directly impacts machining efficiency and quality. Different machining materials require specific spindle speeds and power:
Aluminum and Graphite: High-speed spindles (≥30,000 RPM) are recommended to achieve efficient cutting and excellent surface finish.
Titanium Alloy: Due to high material strength, a spindle speed of around 15,000 RPM is advised to reduce tool wear and enhance machining stability.
Heavy-Duty Turning (e.g., Impeller Roughing): High-torque spindles with power exceeding 40 kW ensure robust and stable turning.
Mold Finishing: Low-vibration direct-drive spindles minimize vibrations, improving mold surface quality and machining accuracy.
3. Interpretation of Accuracy Standards
Accuracy requirements vary across industries:
Aerospace Industry: Typically requires high precision up to IT6 grade.
Mold Industry: Generally, IT8 grade accuracy suffices.
Differences in accuracy standards dictate equipment selection and process workflows. High-precision CNC equipment may come at a higher cost but meets stricter quality demands. For cost-sensitive applications, selecting equipment that matches actual accuracy needs ensures a balance between economy and efficiency.
4.CNC System and 5-Axis Simultaneous Machining Technology
5-axis simultaneous machining is the core functionality of modern 5-axis CNC machining centers. Through coordinated movement of three linear axes (X, Y, Z) and two rotational axes (A, C or B, C), the machine can process complex curves from multiple angles and directions. This not only significantly enhances the capability to manufacture complex parts but also offers the notable advantage of "single setup"—completing multiple surfaces and processes in one clamping, eliminating positioning errors and repeated alignment issues, thereby improving both accuracy and efficiency.
When selecting a CNC system, focus on its algorithm performance, 5-axis synchronization capabilities, and machining path optimization, as these factors directly impact machining efficiency and final product quality. Common 5-axis CNC systems include:
Siemens SINUMERIK ONE: Ideal for high-precision surface machining in aerospace and precision machinery industries, featuring advanced digital control and simulation functions.
Heidenhain TNC 640: Known for high-speed response algorithms, excelling in mold manufacturing and automotive part production where rapid machining is critical.
We can flexibly configure these CNC systems based on customer needs to ensure exceptional equipment performance and meet the demands of efficient, precision machining for complex parts.

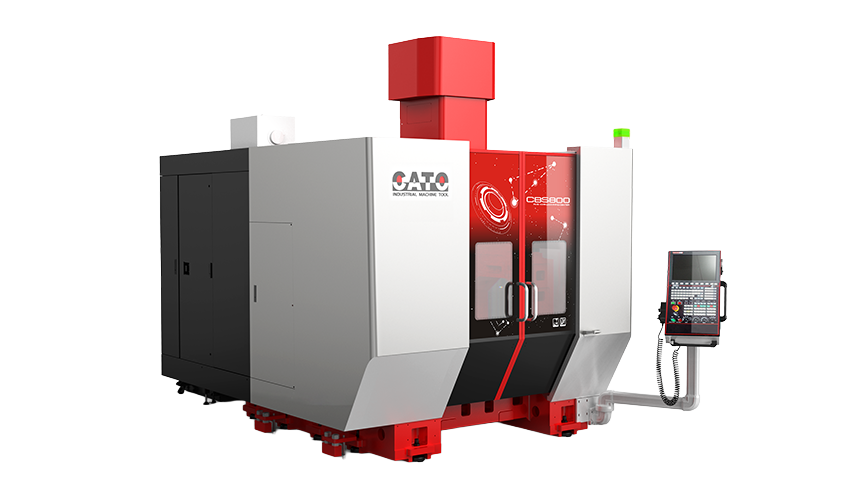

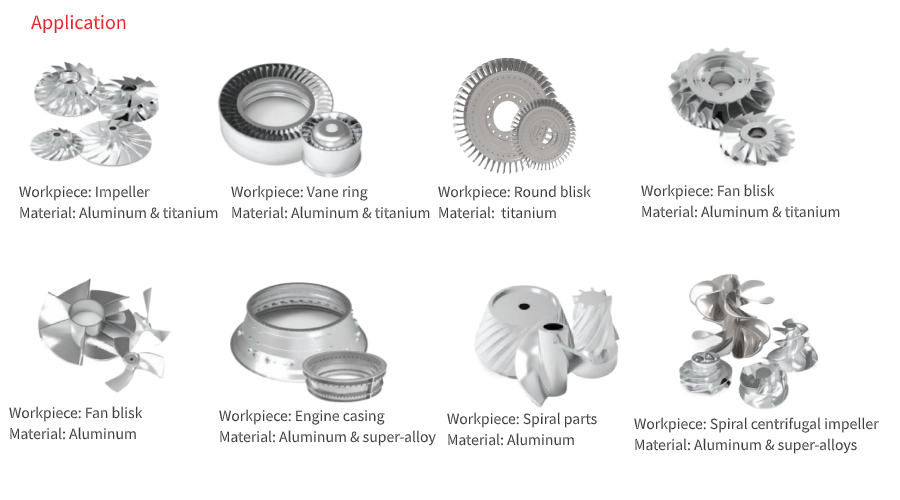

5. Typical Application Cases
5-axis simultaneous CNC machining centers are widely used for processing the following parts:
Aerospace engine impellers (Materials: Aluminum, Titanium)
Fan discs (Materials: Aluminum)
Helical components (Materials: Aluminum)
Blisks and structural discs (Materials: Titanium)
Engine casings (Materials: Titanium, Superalloys)
Turbine components (Materials: Stainless Steel, Superalloys)
By configuring equipment parameters based on material and workpiece shape, machining efficiency and product quality can be significantly enhanced.
Summary
To help you quickly select the right equipment, please provide the following information when contacting us:
Workpiece dimensions (height, diameter, etc.)
Primary machining materials (e.g., aluminum, titanium)
Main machining processes (e.g., roughing, finishing)
Specific accuracy requirements (e.g., IT6, IT8)
Desired spindle speed and power range
Special requirements for CNC systems or 5-axis synchronization
This information will help us recommend the most suitable 5-axis CNC milling solution for you.
Scientifically selecting a 5-axis machining center) is a critical step to enhance manufacturing standards and market competitiveness. If you have further questions about selection, feel free to contact us. CATO will provide professional advice and customized services!
▷ For details, visit: https://en.catocnc.com/products_details/8.html
▷ Technical consultation: +86 138-2920-2050
