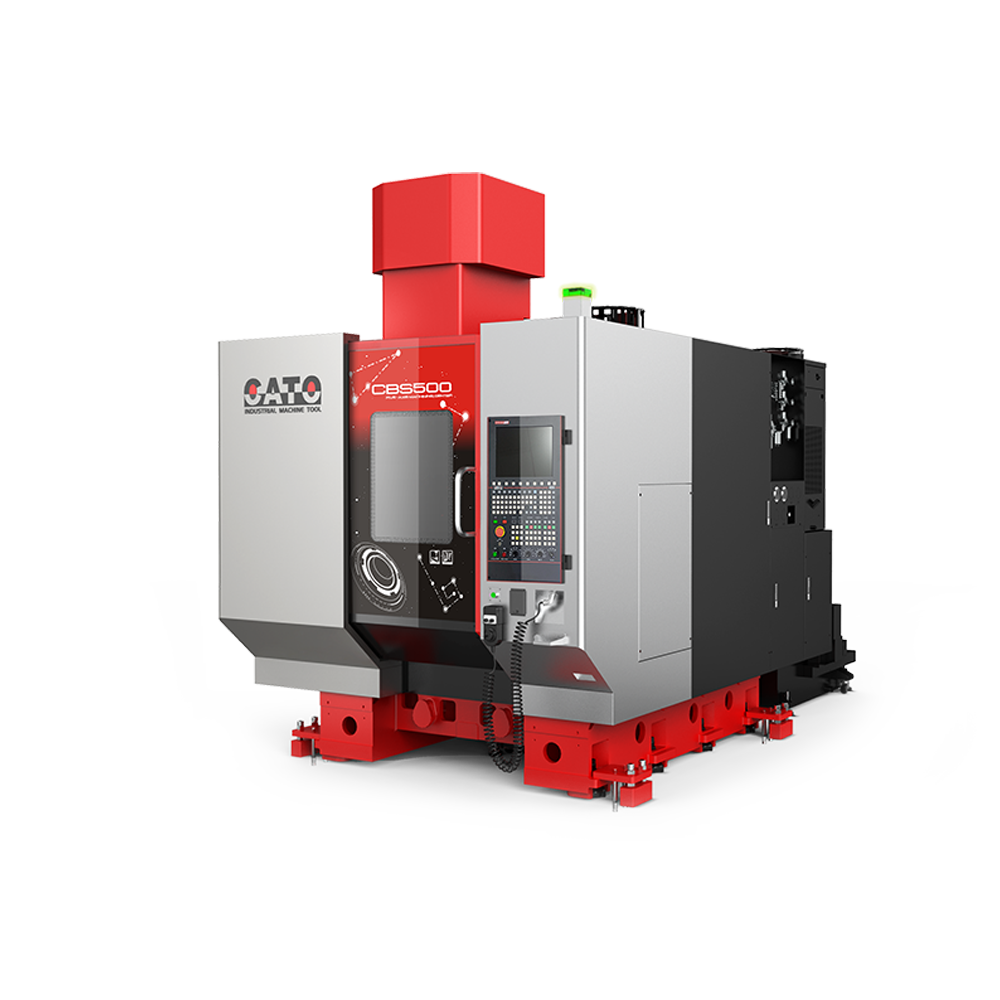

CBS500/500C

Five-axis gantry type machining center

■ Gantry-type structure design ■ Direct drive linear motor on X-axis & Y-axis ■ Direct drive torque motor on B-axis & C-axis ■ The Z-axis is equipped with high-precision linear encoder ■ In-house developed: motorized spindle, swiveling and rotary table, CNC control system, automatic tool magazine

Product Specification

Spindle | Head

Product Standard

Machining Application

Product Features

High-Rigidity Gantry-Type Structure Design

• The gantry-type structure prevents linear axes from being influenced by the weight and size of workpieces, while linear axes are in acceleration and deceleration movement.

• High-rigidity and stable structure enables machine to have outstanding work loading capabilities.
The movement of X, Y, Z-axis would not be influenced by the the weight and size of workpieces.

Structure Optimization Design

• Maintain high stability when in high-speed machining

• Maintain high rigidity when in rough machining

Direct Drive Linear Motor on X and Y-axis

Non-mechanical transmission, non-backlash ｜ Permanently high precision

Direct Drive Linear Motor

• Non-mechanical transmission, non-backlash
• High acceleration and deceleration, quick response time
• Permanently high precision
• Low noise & vibration
• Easy maintenance

Direct Drive Torque Motor

• Non-mechanical transmission, non-backlash
• High acceleration and deceleration, quick response time
• Permanently high precision
• Low noise & vibration
• Easy maintenance

High-Rigidity Roller Type Linear Guideway

• High-rigidity machining
• High-precision machining

High-Precision Linear Encoder and Angle Encoder

• High-rigidity machining
• High-precision machining

Product Specification

Specifications	Units	CBS500	CBS500C
Travels
X/Y/Z axis travel	mm	500 x 600 x 450	500 x 600 x 450
Distance from spindle nose to working table surface	mm	130-580	130-580
Spindle
Spindle taper	type	A63	A63
Maximum spindle speed	rpm	20,000	20,000
Power (S1/S6 40%)	Kw	30/40	30/40
Torque (S1/S6 40%)	Nm	47.7/57.3	47.7/57.3
Feed rate
X/Y/Z axis movement speed	m/min	48/48/48	48/48/48
Feeding speed	mm/min	1-24,000	1-24,000
Working table
Working table (length x width )	m/min	Ø500	Ø500
Loading capacity	kg	600	240
A-axis swivel angle	°	± 110°	± 110
C-axis swivel angle	°	± 360°	± 360°
A-axis speed (S1/MAX)	rpm	55 / 55	55 / 55
C-axis speed (S1/MAX)	rpm	40 / 80	400 / 1,000
A-axis torque (S1/MAX)	Nm	1,750/3,130	1,750/3,130
C-axis torque (S1/MAX)	Nm	356 / 670	310/ 560
A-axis positioning & repeated positioning accuracy	arm sec	10 / 6	10 / 6
C-axis positioning & repeated positioning accuracy	arm sec	8 / 4	8 / 4
Tool Magazine
Tool capacity	pcs	25	25
Max tool diameter (occupied / free adjacent pocket)	mm	80 / 120	80 / 120
Max tool weight	kg	8	8
Tool exchange time (Tool-to-tool)	sec	7	7
Three Axis
X-axis guideway (width / shoes quantity)	mm/pcs	30/2	35/2
Y-axis guideway (width / shoes quantity)	mm/pcs	35/2 + 30/2	45/2
Y-axis guideway (width / shoes quantity)	mm/pcs	25/2	35/2
X-axis linear motor thrust (S1/MAX)	Nm	1,097/2,750	2,167/5,550
Y-axis linear motor thrust (S1/MAX)	Nm	3,250/8,250	2,167/5,500
Z-axis linear motor thrust (S1/MAX)	Nm	1,033/1,511	2R40/0
Accuracy
Position accuracy (ISO 230-2)	mm	0.005	0.005
Repeated positioning accuracy (ISO 230-2)	mm	0.003	0.003

Spindle | Head

Product Standard

CBS200

CBS200C

CBS300

CBS300C

CBS400

CBS400C

CBS500

CBS500C

CBS650

CBS650C

CBS800

CBS800C

CBS1000

CBS1000C

CBS1250

CBS1200C

CNC control system(Simens ONE)

√

CNC control system(C80 PLUS)

▲

CNC control system(Heidenhain TNC640)

▲

HSK-E40 (30,000rpm) built-in type spindle

√

▲

HSK-A63 (16,000rpm) built-in type spindle

▲

HSK-A63 (20,000rpm) built-in type spindle

▲

√

HSK-A63 (24,000rpm) built-in type spindle

▲

HSK-A100 (10,000rpm) built-in type spindle

√

HSK-A100 (12,000rpm) built-in type spindle

▲

16T tool magazine

√

25T tool magazine

▲

√

26T tool magazine

√

30T tool magazine

√

▲

40T tool magazine

▲

√

60T tool magazine

▲

X/Y/Z/A/C closed loop

√

Fully enclosed protection cover

√

Electrical enclosure air conditioner

√

Portable manual pulse generator

√

Motorized spindle temperature control device

√

Contact tool setter

√

Safe door system

√

Automatic lubricator

√

LED work light

√

LED 3-color warning light

√

Coolant nozzle

√

Flooding system

√

Blower device

√

Drum scraper chip conveyor

√

Drum chain chip conveyor

▲

Compound chip conveyor

▲

Air filter apparatus

√

Tool kits

√

Technical manual

√

Through Spindle Coolant(TSC)

▲

Laser tool setter

▲

Online detection system

▲

Immersion coolant cooling system

▲

Rotary table built-in oil circuit(4A4B)

▲

Broken tool detection

▲

Automatic door

▲

Automatic window

▲

Automatic interface

▲

Oil mist collector

▲

Power sourc manostat

▲

Oil water separator

▲

√ Standard ▲ Option -- Not available

Machining Application

Titanium Pillow Block
