A15L

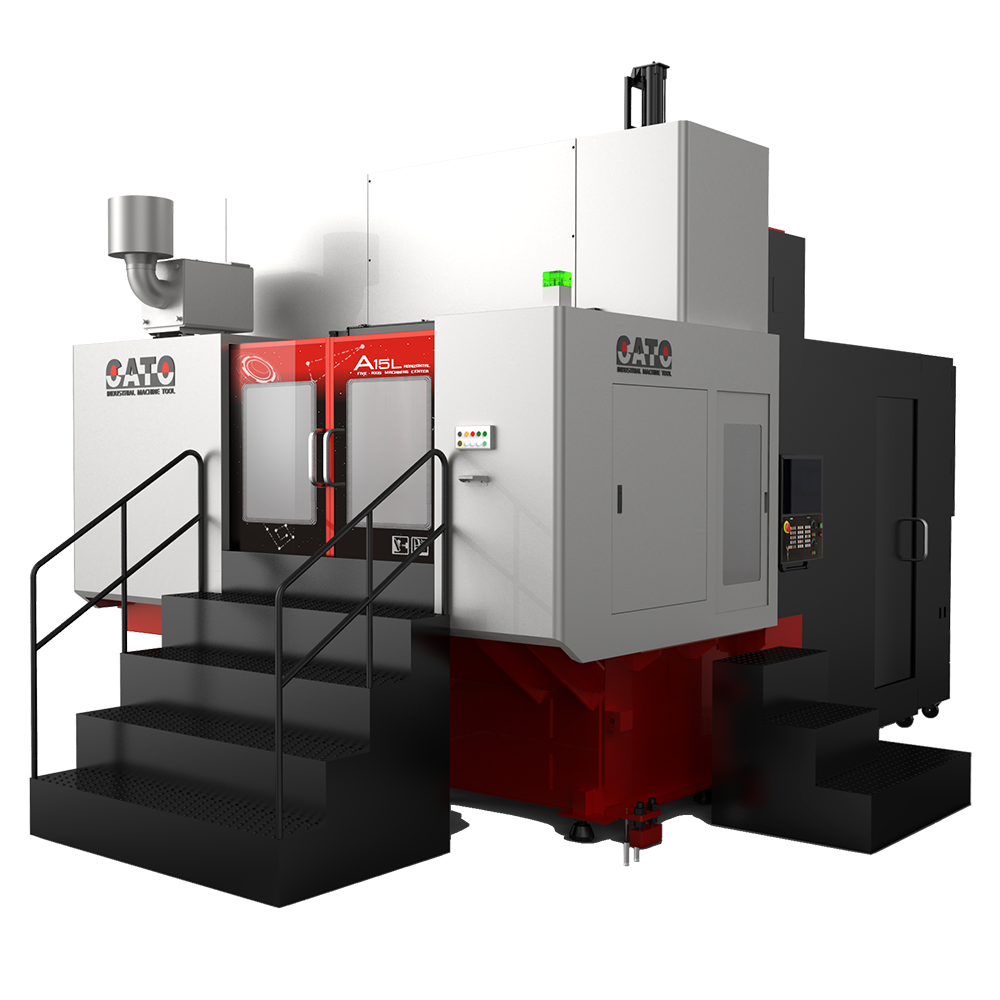

Five-axis horizontal cradle machining center

■ Excellent interface design for load and unload workpiece, easy maintenance and smooth chip discharge ■ Lightweight design with rapid traverse up to 100m/min ■ High stability: ladder-type structure design on X-axis for high stability ■ High reliability: swiveling and rotary table for double-sided machining ■ In-house developed: motorized spindle, swiveling and rotary table, CNC control system, automatic tool magazine

Product Specification

Spindle | Head

Product Standard

Machining Application

Product Features

High-Rigidity Structure Design

The horizontal machining center features

• Excellent interface design for load and unload workpiece

• Easy maintenance

• A flooding coolant system for high-efficiency chip discharge

In-House Developed Swiveling and Rotary Table

• The machining center is equipped with direct drive torque motor on A and B-axis. Due to non-mechanical transmission, non-backlash, high acceleration and deceleration, quick response time, the machine can maintain consistently high precision.

Direct Drive Linear Motor on X, Y-axis

Non-Mechanical Transmission， Non-Backlash ｜ Permanently high-Precision

Direct Drive Linear Motor

• Non-mechanical transmission, non-backlash
• High acceleration and deceleration, quick response time
• Permanently high-precision
• Low noise and vibration
• Easy maintenance

Direct Drive Torque Motor

• Non-mechanical transmission, non-backlash
• High acceleration and deceleration, quick response time
• Permanently high-precision
• Low noise and vibration
• Easy maintenance

High-Rigidity Roller Type Linear Guideway

• Ensure high-rigidity machining
• Ensure high-precision machining

High-Precision Linear Encoder and Angle Encoder

• Ensure high-rigidity machining
• Ensure high-precision machining

Product Specification

Specifications	Units	A15L
Working travels
Working travels X-/Y-/Z-axis	mm	1500 x 1000 x 650
Distance from spindle nose to A-axis rotation center（vertical）	mm	-250 ~ 750
Distance from spindle plane to A-axis rotation center（horizontal）	mm	335~985
Distance from B-axis plane to A-axis rotation center	mm	150
Distance from spindle nose to table surface（vertical）	mm	-
Distance from spindle plane to B-axis rotation center（horizontal）	mm	-
B-axis max rotation diameter	mm	Ø1800
A-axis max rotation diameter	mm	Ø1960
Linear axes
Feedrate X-/Y-/Z-axis	m/min	100 / 100 / 100
Acceleration X-/Y-/Z-axis	m/s²	10/10/10
Spindle
Spindle type	-	220/built-in type
Spindle taper	-	A100
Max speed	rpm	1,2000
Power (S1 100% / S6 40%)	kW	26 / 35
Torque (S1 100% / S6 40%)	Nm	165 / 239
Rotary table
Table diameter	mm	Ø420 Positioning table
Table loading	kg	1500
A-axis swivel range	°	+90°~-180°
B-axis swivel range	°	360°
A-axis max speed	rpm	20
B-axis max speed	rpm	60
A-axis positioning accuracy/repeated positioning accuracy	arc.sec	10/6
B-axis positioning accuracy/repeated positioning accuracy	arc.sec	8/4
Tool magazine
Capacity	pcs	72
Max diameter (occupied/free adjacent pocket)	mm	110/300
Max length	mm	550
Max weight	kg	20
Tool change time (Tool-to-Tool)	sec	5
Accuracy X/Y/Z-axis
Positioning accuracy	arc.sec / mm	0.01/0.01/0.008
Repeated positioning accuracy	arc.sec / mm	0.008/0.008/0.006

Spindle | Head

Product Standard

A5+a

A5+b

A8+a

A8+b

A13

A13+a

A13+b

A13L

A15L

A25LS+a

A25LS+b

A25LⅡS

Sinumerik 828D

√

Sinumerik One

▲

√

CATO C80 PLUS

▲

20000rpm-M170-A63built-in type

√

16000rpm-M190-A63built-in type

√

12000rpm-M220-A100built-in type

▲

√

5-axis milling head

√

30T tool magazine

√

40T tool magazine

√

41T tool magazine

√

60T tool magazine

▲

√

72T tool magazine

√

X/Y/Z/A/C closed-loop control

▲

√

Fully enclosed protection cover

√

Air-conditioner system

√

Portable manual pulse generator

√

Motorized spindle temperature control device

√

Contact tool setter

√

Automatic lubricator

√

LED work light

√

LED 3-color warning light

√

Coolant nozzle

√

Flooding system

√

Blower device

√

Drum scraper chip conveyor

√

Drum chain chip conveyor

▲

Compound chip conveyor

▲

Air filter apparatus

√

Tool kits

√

Technical manual

√

Through Spindle Coolant(TSC)

√

Laser tool setter

▲

Online detection system

▲

Immersion coolant cooling system

▲

Rotary table built-in oil circuit(4A4B)

▲

Broken tool detection

▲

Automatic door

▲

Automatic interface

▲

Oil mist collector

▲

Power sourc manostat

▲

Oil water separator

√

Wash gun

√

√ Standard ▲ Option -- Not available
