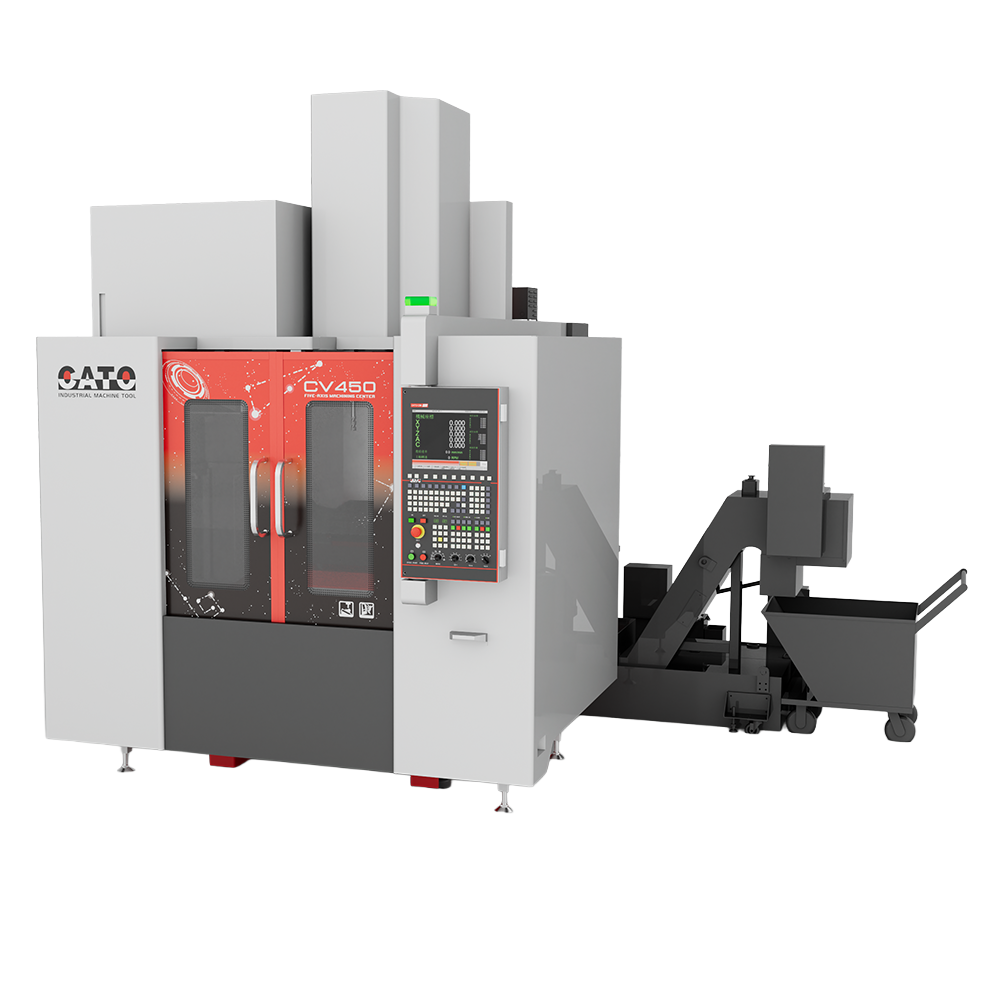

CV450
Five-axis vertical machining center
■ A herringbone structure design with large span for improving column's twist-resistance ■ Employing Finite Element Analysis (FEA) for best stability ■ Lightweight design for best rapid traverse ■ Ball screw linear guideway on Z-axis ■ In-house developed: motorized spindle, swiveling and rotary table, CNC control system, automatic tool magazine
Product Features
High-Rigidity Structure Design
• Employing Finite Element Analysis (FEA), our design ensures high rigidity in critical structural components: the machine bed, column, saddle, mount, and table
• Light-weight table and saddle allow for high-speed machining
• High-rigidity column ensures machine’s twist-resistance and vibration-absorption capabilities
Roller Gear Cam Swiveling and Rotary Table
• Low friction and high efficiency
• Easy maintenance and long-term high accuracy
• High-rigidity structure：employing YRT bearings for high rigidity and high load capacity
Ball Screw With Hollow Cooling System
• Ensure machining center’s thermal stability during high-speed process
• Ensure consistently high accuracy and high efficiency
High-Rigidity Roller Type Linear Guideway
• Ensure high-rigidity machining
• Ensure high-precision machining
High-Precision Linear Encoder and Angle Encoder
• Ensure high-rigidity machining
• Ensure high-precision machining
Product Specification
Specifications | Units | CV450 | CV450(Optional DD cradle) | |
| Travels |
|
| ||
Working travels X-/Y-/Z-axis | mm | 750 x 570 x 500 | 500 x 570 x 450 | |
Distance from spindle nose to table surface | mm | 100 - 600 | 170 - 620 | |
Distance from spindle nose to column | mm | 628 | 628 | |
Max distance from C-axis table surface to spindle nose with A-axis at 90° | mm | 330 | 320 | |
Spindle |
|
| ||
Spindle type | - | 140 / direct drive | 140 / direct drive | |
Spindle taper | - | BBT40 | BBT40 | |
Rotation speed(max) | rpm | 12,000 | 12,000 | |
Power (S1 100% / S6 40%) | kW | 11/15 | 11/15 | |
Torque (S1 100% / S6 40%) | Nm | 52.5/72 | 52.5/72 | |
Feedrate |
|
| ||
X / Y / Z | m/min | 48 / 48 / 48 | 48 / 48 / 48 | |
| Feedrate | mm/min | 1-12,000 | 1-12,000 | |
Five-axis |
|
| ||
Rotary table drive | -- | Roller cam | Drict drive | |
Table diameter | mm | Φ380*300 | Φ300 | |
Max.load capacity (horizontal / tilted) | kg | 100 / 70 | 100 / 50 | |
A - Axis maximum rotary speed | rpm | 30 | 70 | |
C - Axis maximum rotary speed | rpm | 60 | 250 | 2000 (turning) |
A position accuracy / repeated position accuracy | arc-sec | 15/12 | 10 / 6 | |
C position accuracy / repeated position accuracy | arc-sec | 15/12 | 8 / 4 | |
Lubrication |
|
| ||
Lubrication capacity | L | 1.8 | 1.8 | |
Lubrication Flow Divider Type | -- | Volumetric | Volumetric | |
| Cutting Fluid |
|
| ||
Tank Capacity | L | 240 | 240 | |
Pump | -- | 0.32Mpa x 16L/min | 0.32Mpa x 16L/min | |
| Tool Magazine |
|
| ||
Tool capacity | T | 32 | 32 | |
Tool exchange time (Tool-to-tool) | S | 4 | 4 | |
Max.Tool diameter (occupied / free adjacent pocket ) | mm | 70/120 | 70/120 | |
Tool length (Max) | mm | 300 | 300 | |
Tool weight (Max) | kg | 8 | 8 | |
| Three-axis |
|
| ||
X - axis (width / quantity) | mm | 35 / 2 | 35 / 2 | |
Y- axis (width / quantity) | mm | 35 / 2 | 35 / 2 | |
Z- axis (width / quantity) | mm | 35 / 2 | 35 / 2 | |
X - axis ball screw | mm | Φ40 x 16 | Φ40 x 16 | |
Y - axis ball screw | mm | Φ40 x 16 | Φ40 x 16 | |
Z - axis ball screw | mm | Φ40 x 16 | Φ40 x 16 | |
| Accuracy |
|
| ||
Positioning accuracy | mm | ±0.003 / 300 | ±0.003 / 300 | |
Repeated positioning accuracy | mm | ±0.003 / 300 | ±0.003 / 300 | |
| Other |
|
| ||
Air requirement | mm | ≥6 | ≥6 | |
Air volume | mm | ≥0.4 | ≥0.2 | |
Power capacity | kg/cm² | 22.5 | 22.5 | |
| Machine dimensions |
|
| ||
Total machine weight | T | 6 | 6 | |
Overall machine dimensions (length x width x high) | mm | 2,250 x 3,010 x 2,862 | 2,250 x 3,010 x 2,862 | |

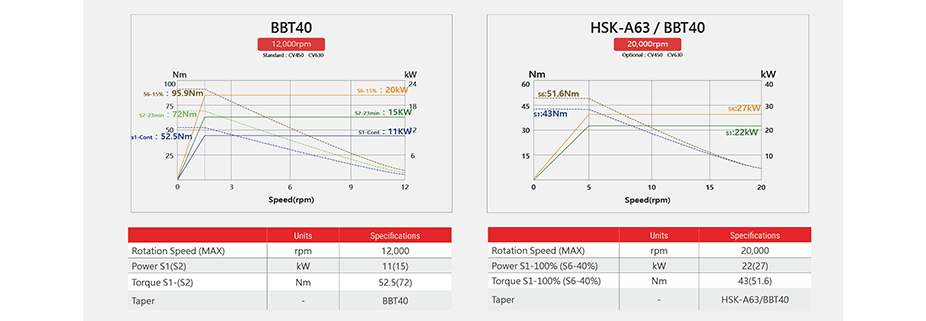

Spindle | Head
Product Standard
| CV320 | CV450 | CV450（Optional DD cradle） | CV630 |
CATO C80 Plus system | √ | √ | √ | √ |
FANUC system | -- | ▲ | ▲ | ▲ |
Siemens 828D/ONE | ▲ | ▲ | ▲ | ▲ |
Tool setting gauge | √ | √ | √ | √ |
BT30-12,000rpm (direct driven type) | √ | -- | -- | -- |
BT30-24,000rpm (direct driven type) | ▲ | -- | -- | -- |
BBT40-12,000rpm (direct driven type) | -- | √ | √ | √ |
HSK-A63-20,000rpm (build-in type) | -- | ▲ | ▲ | ▲ |
| BBT 40-20,000rpm (build-in type) | -- | ▲ | ▲ | ▲ |
| 21 tools disktype ATC | √ | -- | -- | -- |
| 32 tools arm type ATC | -- | √ | √ | √ |
| LED working lamp | √ | √ | √ | √ |
| Portable manual pulse generator | √ | √ | √ | √ |
| LED 3-Color Operation instruct light | √ | √ | √ | √ |
| Automatic lubrication system | √ | √ | √ | √ |
| Fully enclosed protection cover | √ | √ | √ | √ |
| Rigid tapping | √ | √ | √ | √ |
| Nozzle cutting fluid supply device | √ | √ | √ | √ |
| Blower device | √ | √ | √ | √ |
| Tool kits | √ | √ | √ | √ |
| Technical manual | √ | √ | √ | √ |
| Automatic door | ▲ | ▲ | ▲ | ▲ |
| Airtight detection | ▲ | ▲ | ▲ | ▲ |
| Security light curtain | ▲ | ▲ | ▲ | ▲ |
| Hydraulic pressure station | ▲ | ▲ | ▲ | ▲ |
| Tool setting gauge | ▲ | ▲ | ▲ | ▲ |
| Broken knife detection | -- | ▲ | ▲ | ▲ |
| Through Spindle Coolant(TSC) | ▲ | ▲ | ▲ | ▲ |
| Online detection system | ▲ | ▲ | ▲ | ▲ |
| Oil mist collector | ▲ | ▲ | ▲ | ▲ |
| Horizontal chain plate chip conveyor | ▲ | ▲ | ▲ | ▲ |
| Internal surrounding chip flushing device | ▲ | ▲ | ▲ | ▲ |
| Immersion coolant cooling | ▲ | ▲ | ▲ | ▲ |
| Axial grating ruler | ▲ | ▲ | ▲ | ▲ |
√ Standard ▲ Option -- Not available
Machining Application
1-Wing rib
2-Extrusion profile parts of Aviation
3-Extrusion profile parts of high-speed Train
4-Motorcycle Frames
5-NEV Beam
6-Die Casting Torque Box
7- NEV longitudinal Aluminum
8-Bie Cast Battery Tray
