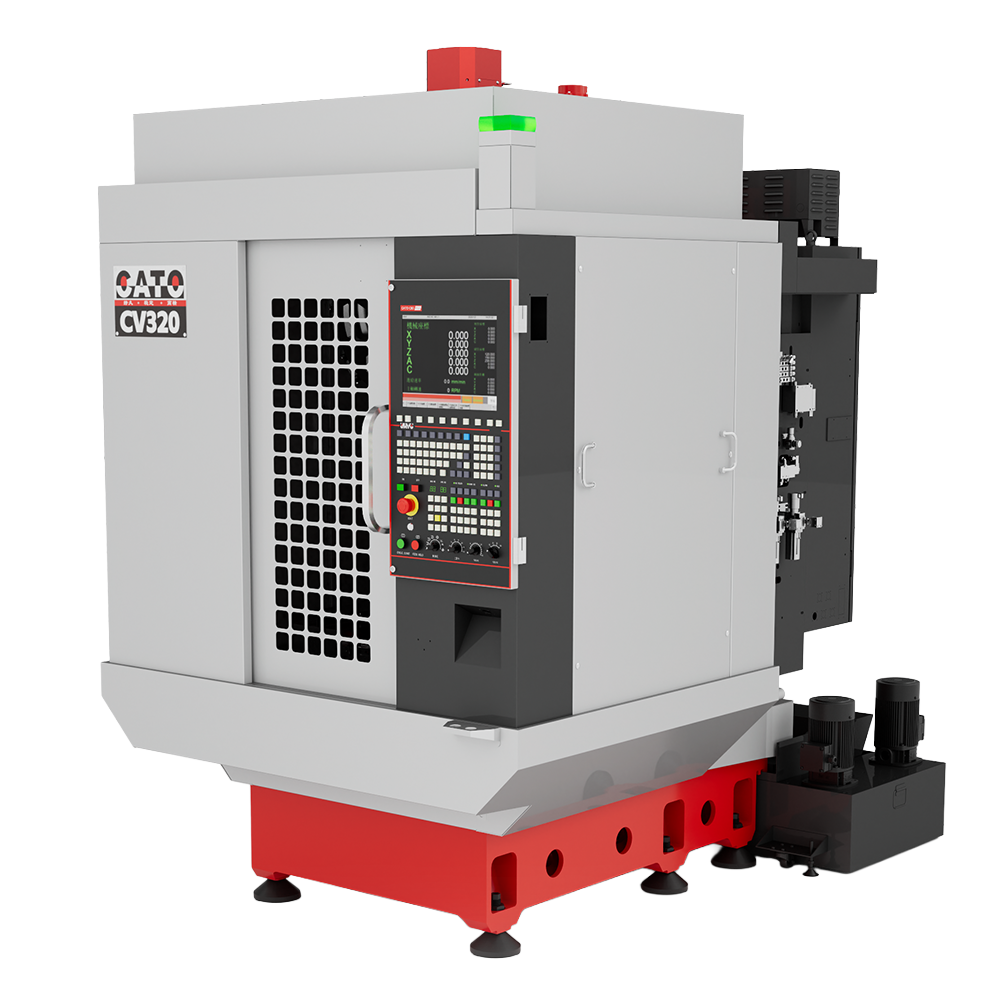

CV320
Five-axis vertical machining center
■ A herringbone structure design with large span for improving column's twist-resistance ■ Employing Finite Element Analysis (FEA) for best stability ■ Lightweight design for best rapid traverse ■ Ball screw linear guideway on Z-axis ■ In-house developed: motorized spindle, swiveling and rotary table, CNC control system, automatic tool magazine
Product Features
High-Rigidity Structure Design
• Employing Finite Element Analysis (FEA), our design ensures high rigidity in critical structural components: the machine bed, column, saddle, mount, and table
• Light-weight table and saddle allow for high-speed machining
• High-rigidity column ensures machine’s twist-resistance and vibration-absorption capabilities
High-Rigidity Ball Screws for Transmission
• High rigidity
• High efficiency
High-Rigidity Roller Type Linear Guideway
• Ensure high-rigidity machining
• Ensure high-precision machining
High-Precision Linear Encoder and Angle Encoder
• Ensure high-rigidity machining
• Ensure high-precision machining
Product Specification
|
Specifications |
Units | CV320 | |
| Travels |
|
|
|
|
Working travels X-/Y-/Z-axis |
mm |
500 x 400 x 330 |
|
|
Distance from spindle nose to table surface |
mm |
100 ~ 430 |
|
|
Distance from spindle nose to column |
mm |
412 |
|
|
Max distance from C-axis table surface to spindle nose with A-axis at 90° |
mm |
240 | |
|
Spindle |
|
|
|
|
Spindle type |
- |
95/dirict drive |
|
|
Spindle taper |
- |
BT30 |
|
|
Rotation speed(max) |
rpm |
1,2000 |
|
|
Power (S1 100% / S6 40%) |
kW |
8.2 / 12 |
|
|
Torque (S1 100% / S6 40%) |
Nm |
26 / 38 |
|
|
Feedrate |
|
|
|
|
X / Y / Z |
m/min |
48 / 48 / 48 |
|
| Feedrate |
mm/min |
50 - 30,000 |
|
|
Five-axis |
|
|
|
|
Rotary table drive |
-- |
Direct drive |
|
|
Table diameter |
mm |
Φ260 |
|
|
Max.load capacity (horizontal / tilted) |
kg |
40 / 20 |
|
|
A - Axis maximum rotary speed |
rpm |
100 |
|
|
C - Axis maximum rotary speed |
rpm |
230 | 2000 (turning) |
|
A position accuracy / repeated position accuracy |
arc-sec |
10 / 6 |
|
|
C position accuracy / repeated position accuracy |
arc-sec |
8 / 4 |
|
|
Lubrication |
|
|
|
|
Lubrication capacity |
L |
1.8 |
|
|
Lubrication Flow Divider Type |
-- |
Volumetric |
|
| Cutting Fluid |
|
|
|
|
Tank Capacity |
L |
140 |
|
|
Pump |
-- |
0.25Mpa X 6L/min |
|
| Tool Magazine |
|
|
|
|
Tool capacity |
T |
21 |
|
|
Tool exchange time (Tool-to-tool) |
S |
2 |
|
|
Max.Tool diameter (occupied / free adjacent pocket ) |
mm |
80 / 250 |
|
|
Tool length (Max) |
mm |
250 |
|
|
Tool weight (Max) |
kg |
3 |
|
| Three-axis |
|
|
|
|
X - axis (width / quantity) |
mm |
30 / 2 |
|
|
Y- axis (width / quantity) |
mm |
30 / 2 |
|
|
Z- axis (width / quantity) |
mm |
30 / 2 |
|
|
X - axis ball screw |
mm |
Φ25 x 16 |
|
|
Y - axis ball screw |
mm |
Φ25 x 16 |
|
|
Z - axis ball screw |
mm |
Φ25 x 16 |
|
| Accuracy |
|
|
|
|
Positioning accuracy |
mm |
±0.003 / 300 |
|
|
Repeated positioning accuracy |
mm |
±0.003 / 300 |
|
| Other |
|
|
|
|
Air requirement |
mm |
≥6 |
|
|
Air volume |
mm |
≥0.2 |
|
|
Power capacity |
kg/cm² |
16 |
|
| Machine dimensions |
|
|
|
|
Total machine weight |
T |
2.9 |
|
|
Overall machine dimensions (length x width x high) |
mm |
1,556 x 2,358 x 2,417 |
|
Spindle | Head
Product Standard
|
|
CV320 |
CV450 |
CV450（Optional DD cradle） |
CV630
|
|
CATO C80 Plus system |
√ |
√ |
√ |
√ |
|
FANUC system |
-- |
▲ |
▲ |
▲ |
|
Siemens 828D/ONE |
▲ |
▲ |
▲ |
▲ |
|
Tool setting gauge |
√ |
√ |
√ |
√ |
|
BT30-12,000rpm (direct driven type) |
√ |
-- |
-- |
-- |
|
BT30-24,000rpm (direct driven type) |
▲ |
-- |
-- |
-- |
|
BBT40-12,000rpm (direct driven type) |
-- |
√ |
√ |
√ |
|
HSK-A63-20,000rpm (build-in type) |
-- |
▲ |
▲ |
▲ |
| BBT 40-20,000rpm (build-in type) |
-- |
▲ |
▲ |
▲ |
| 21 tools disktype ATC |
√ |
-- |
-- |
-- |
| 32 tools arm type ATC |
-- |
√ |
√ |
√ |
| LED working lamp |
√ |
√ |
√ |
√ |
| Portable manual pulse generator | √ | √ | √ | √ |
| LED 3-Color Operation instruct light |
√ |
√ |
√ |
√ |
| Automatic lubrication system |
√ |
√ |
√ |
√ |
| Fully enclosed protection cover |
√ |
√ |
√ |
√ |
| Rigid tapping |
√ |
√ |
√ |
√ |
| Nozzle cutting fluid supply device |
√ |
√ |
√ |
√ |
| Blower device |
√ |
√ |
√ |
√ |
| Tool kits |
√ |
√ |
√ |
√ |
| Technical manual |
√ |
√ |
√ |
√ |
| Automatic door |
▲ |
▲ |
▲ |
▲ |
| Airtight detection |
▲ |
▲ |
▲ |
▲ |
| Security light curtain |
▲ |
▲ |
▲ |
▲ |
| Hydraulic pressure station |
▲ |
▲ |
▲ |
▲ |
| Tool setting gauge |
▲ |
▲ |
▲ |
▲ |
| Broken knife detection |
-- |
▲ |
▲ |
▲ |
| Through Spindle Coolant(TSC) |
▲ |
▲ |
▲ |
▲ |
| Online detection system |
▲ |
▲ |
▲ |
▲ |
| Oil mist collector |
▲ |
▲ |
▲ |
▲ |
| Horizontal chain plate chip conveyor |
▲ |
▲ |
▲ |
▲ |
| Internal surrounding chip flushing device |
▲ |
▲ |
▲ |
▲ |
| Immersion coolant cooling |
▲ |
▲ |
▲ |
▲ |
| Axial grating ruler | ▲ | ▲ | ▲ | ▲ |
√ Standard ▲ Option -- Not available
Machining Application
1-Wing rib
2-Extrusion profile parts of Aviation
3-Extrusion profile parts of high-speed Train
4-Motorcycle Frames
5-NEV Beam
6-Die Casting Torque Box
7- NEV longitudinal Aluminum
8-Bie Cast Battery Tray
Product Video
